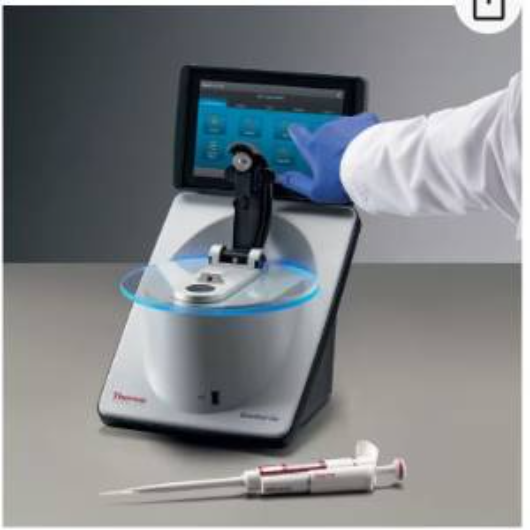

NANODROP™ ONE/ONE C MICROVOLUME UV VIS SPECTROPHOTOMETER

Certifications/Compliance  - All NanoDrop instruments are approved to CE and UL/CSA.

Compatibility  - DYMO LabelWriter 450 printer, Bluetooth keyboard, mouse and barcode reader

Concentrationds

DNA: Pedestal: 27,500 ng/μL
BSA (IgG): Pedestal: 820 (400) mg/mL

Connections

Three USB-A ports, Ethernet, Bluetooth™ and Wi-Fi
(Only available on instruments with Wi-Fi/Bluetooth support)

Description

NanoDrop One^C Microvolume UV-Vis Spectrophotometer with Wi-Fi

Detection Range

dsDNA: Pedestal: 2.0 ng/μL, Cuvette: 0.2 ng/μL,
BSA (IgG): Pedestal: 0.06 (0.03) mg/mL, Cuvette: 0.006 (0.003) mg/mL

Detector Type

2048-element CMOS Linear Image Sensor

Display7 in. High Definition Color Display, 1280 x 800 pixels

Dimensions (L x W x H)20 x 25.4 x 32.3 cm (8 x 10 x 12.7 in.)

Light SourceXenon Flash

Spectral Bandwidth≤1.8 nm (FWHM at Hg 254 nm)

Voltage12 VDC

Wavelength Range190 to 850 nm

KeypadBuilt-in touchscreen, multipoint capacitive touch

Measurement Time8 seconds

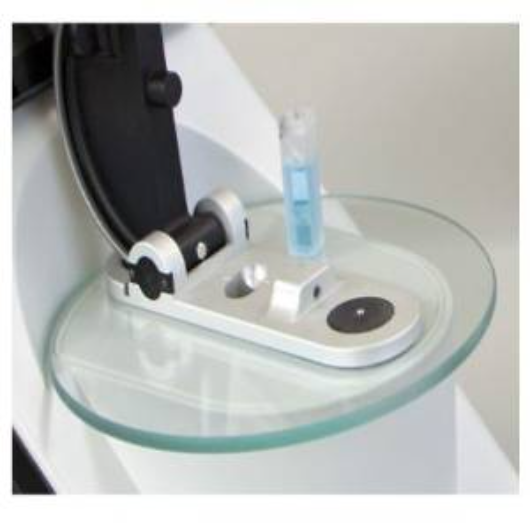

Pathlength

0.030 to 1.0 mm (auto-ranging)

Photometric Accuracy

3% at 0.97 A, 302 nm, (Absorbance expressed at Abs/mm at 25°C)

Photometric Range

10 mm equivalent: Pedestal: 0–550 A; Cuvette: 0–1.5 A

Power ConsumptionOperating: 12 to 18 W; Standby: 5 W

ProcessorAndroid™

RepeatabilityTypical: 0.002 A (1.0 mm path) or 1%CV, whichever is greater
(SD of 10 individual measurements at 0.97 A)

Sample TemperatureTemperature Control (cuvette only) 37 °C

Sample Volume (Metric)Minimum 1μL

System RequirementsWindows™ 8.1 and 10, 64 bit

Wavelength Accuracy±1 nm

Weight (English)7.9 lb.

Weight (Metric)3.6 kg
