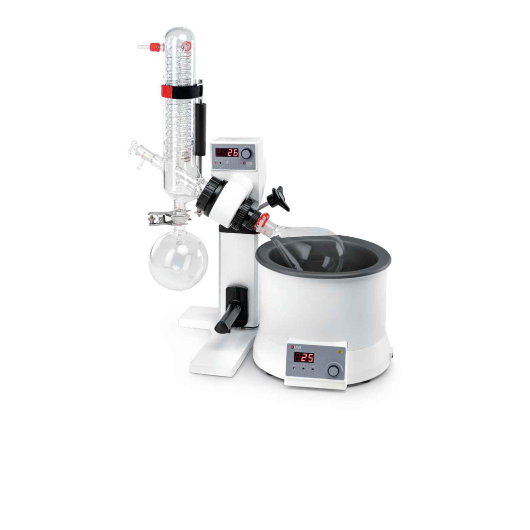

RE100 - S (LED DIGITAL ROTARY EVAPORATOR)
RE100 - S (LED DIGITAL ROTARY EVAPORATOR)
SPECIFICATION:
|
SPECIFICATION |
RE100-S |
|
Evaporating Flask Volume |
50-3000ml |
|
Motor Type |
50-3000ml Brushless DC motor |
|
Evaporation capacity |
Max.1.56L/h(H20) |
|
Speed Range |
20-200 rpm |
|
Display |
LED(speed, temperature, time) |
|
Direction of Rotation |
Clockwise and counter clockwise |
|
Heating Temperature Range |
Room temp. to 1800C |
|
Control Accuracy |
Water: + 10 C oil: + 3 0 C |
|
Evaporation capacity |
Max.1.56L/h(H20) |
|
Heating Power |
1200W |
|
Lift stroke |
Manual 110mm+auxiliary 100mm |
|
Interval Time Setting Range |
1 -999s |
|
Dimension (D x W x H) |
Main Unit: 440x320x450mm Heating Bath: 300x300x 240mm |
|
Weight |
Main Unit : 7kg Heating Bath:3kg |
|
Permissible Ambient Temperature |
5-400 C |
|
Permissible Relative Humidity |
80%RH |
|
Protection Class |
IP20 |
|
USB Interface |
Yes |
|
Voltage/Frequency |
100-120/200-240V, 50/60Hz |
|
Power |
1245W |
